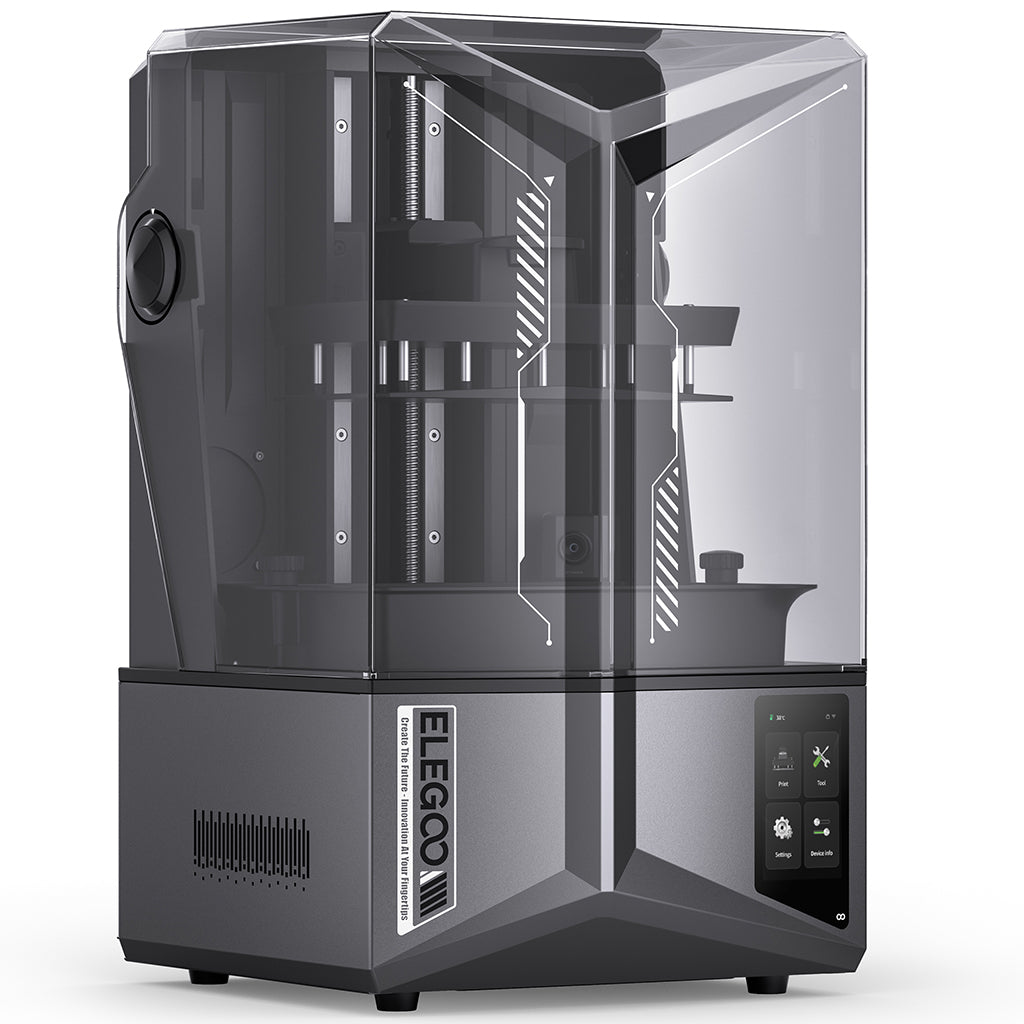

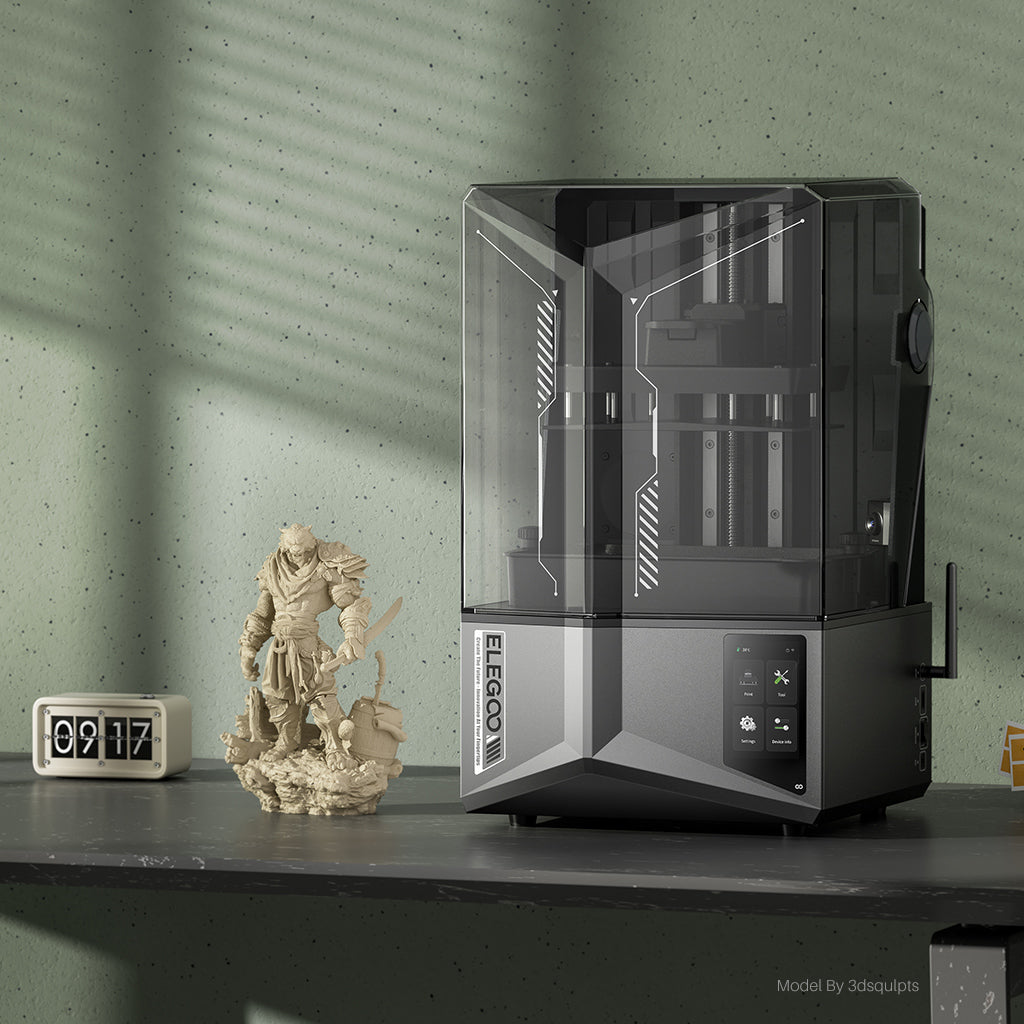

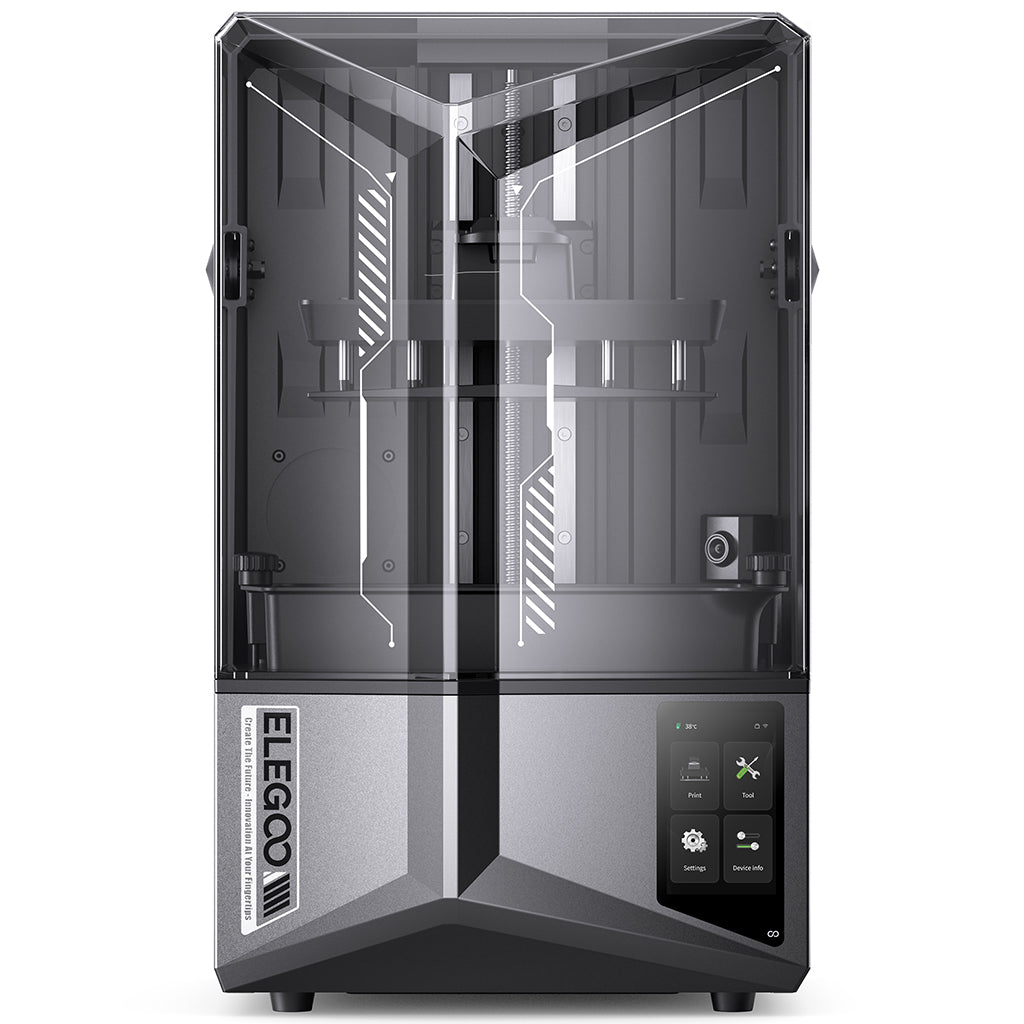

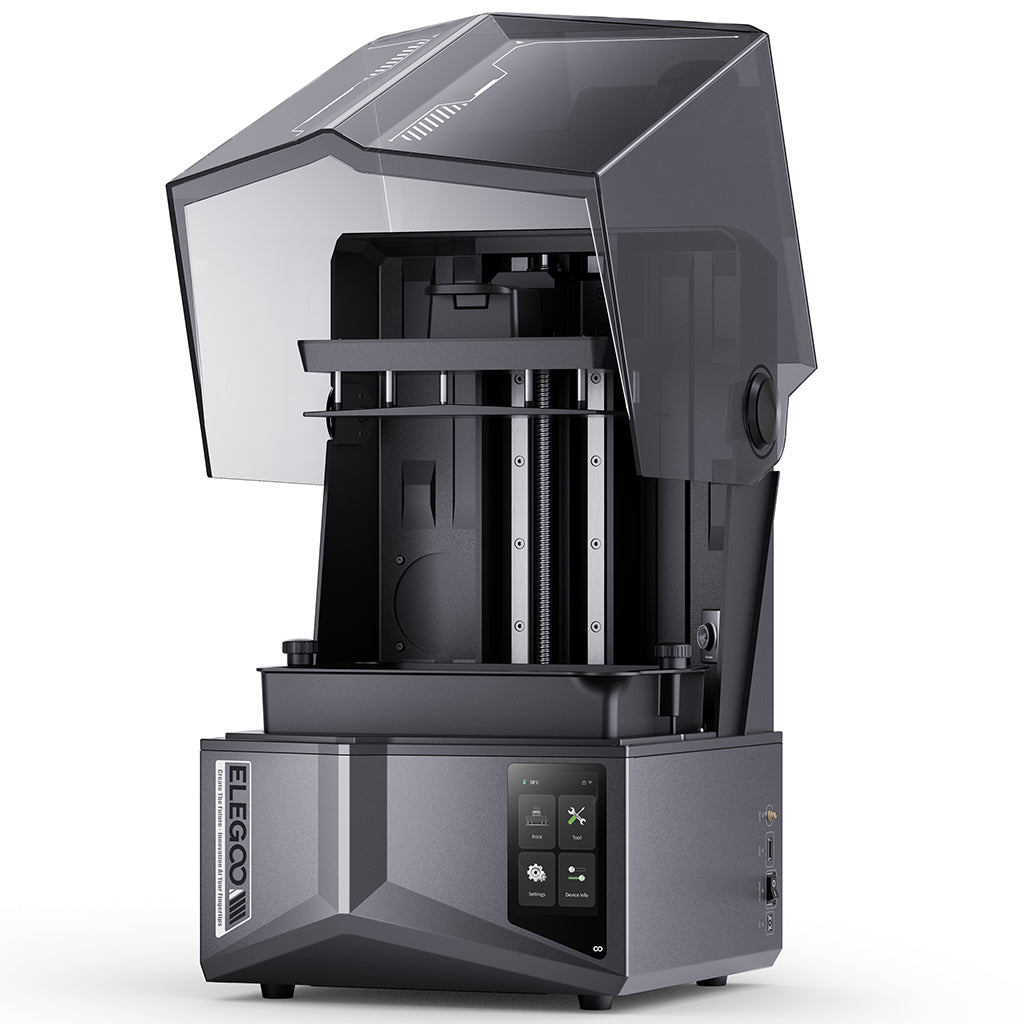

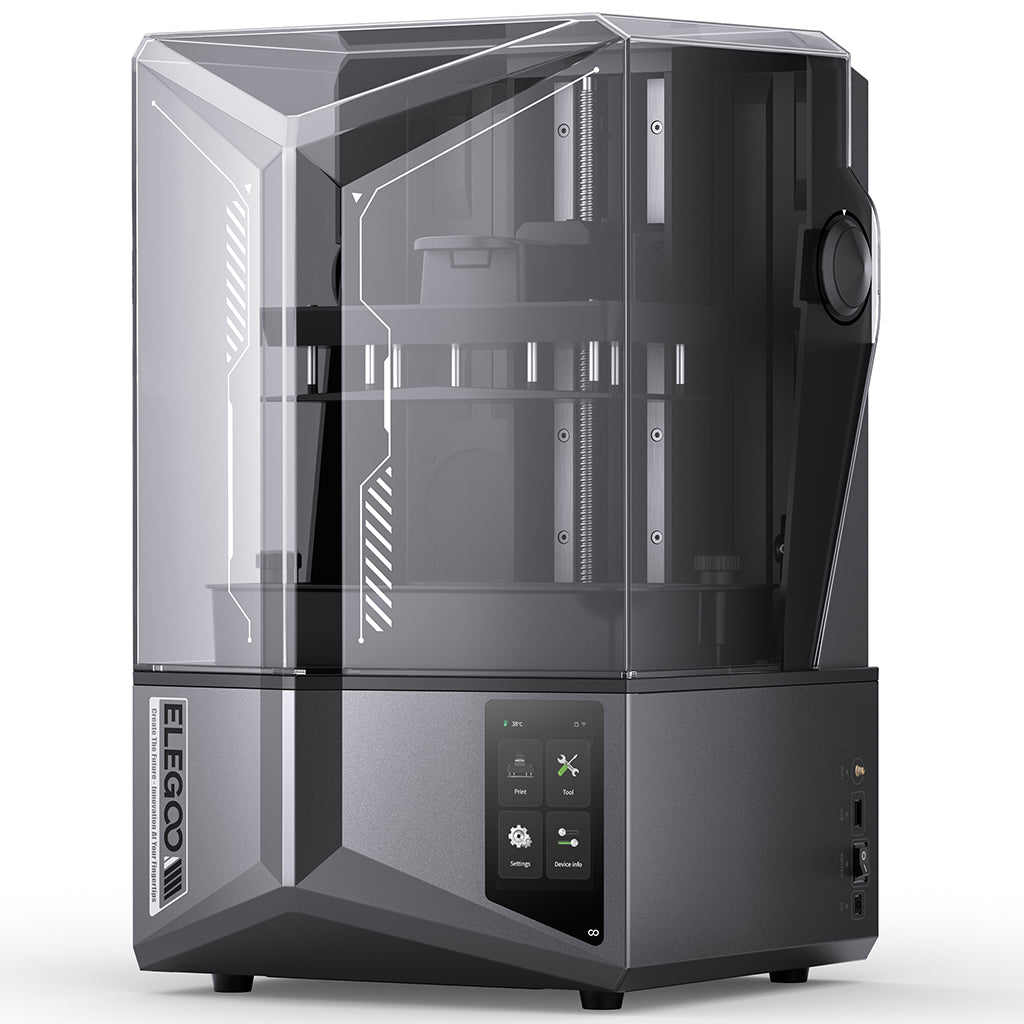

Saturn 4 Ultra

• Innovative Tilt Release Technology
• 10-inch 12K Mono LCD
• COB + Fresnel Collimating Lens
• Auto Leveling & Intelligent Mechanical Sensor
• AI Intelligent Monitoring & Power-Loss Resume Printing

Specification:

System: EL3D-4.0

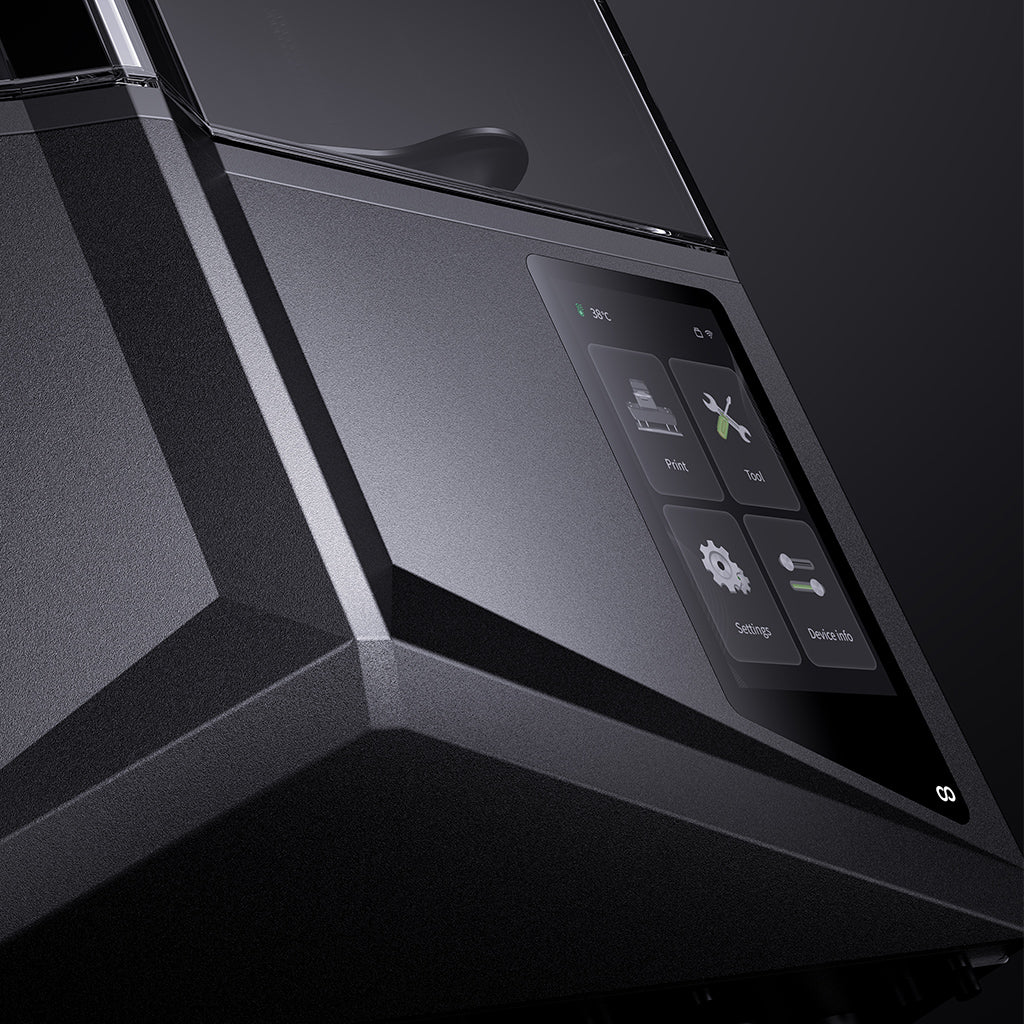

Operation: 4.0-inch Capacitive Touch Screen

Slicer Software: Chitubox & Autodesk Fusion

Connectivity: USB Interface & WiFi

Technology: MSLA Stereolithography

Light Source: COB Light Source + Fresnel Collimating Lens (wavelength 405nm)

XY Resolution: 19 x 24 μm (11520 x 5120)

Z-axis Accuracy: 0.02mm

Layer Thickness: 0.01-0.2mm

Printing Speed: MAX 150mm/H

Power Requirements: 100-240V 50/60 Hz 24V 6A

Dimension: 327.4mm(L)*329.2mm(W)*548mm(H)

Build Volume: 218.88mm(L)*122.88mm(W)*220mm(H)

Package Size: 660mm(L)*450mm(W)*450mm(H)

Gross Weight: 19.3KG

Net Weight: 14.5KG

Comparison: Saturn 4 vs Saturn 4 Ultra

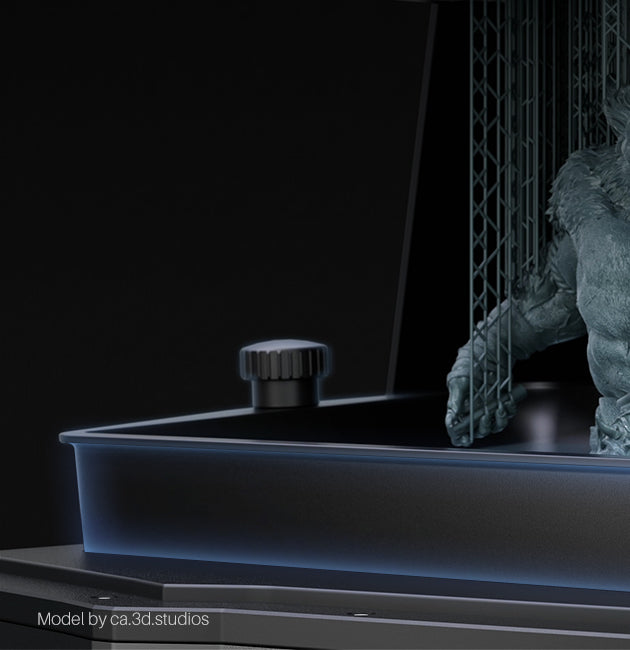

Tilt Release Technology, Ultra Fast Printing

Unmatched Details With 12K Mono LCD

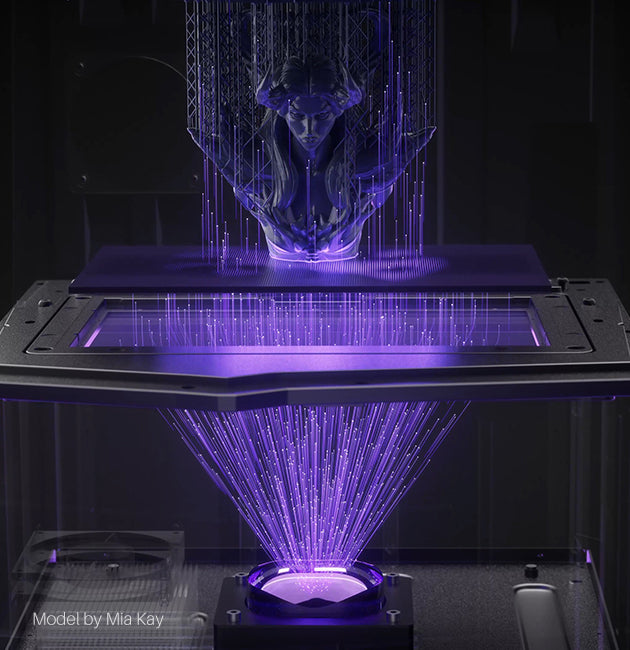

COB & Fresnel Collimating Lens For Smoother Surface

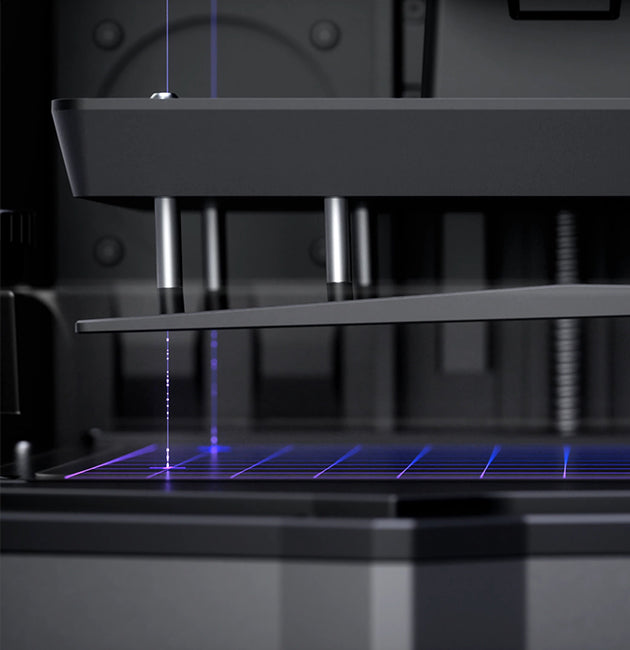

Self-Check & Automatic LevelingPrint Right Out Of The Box

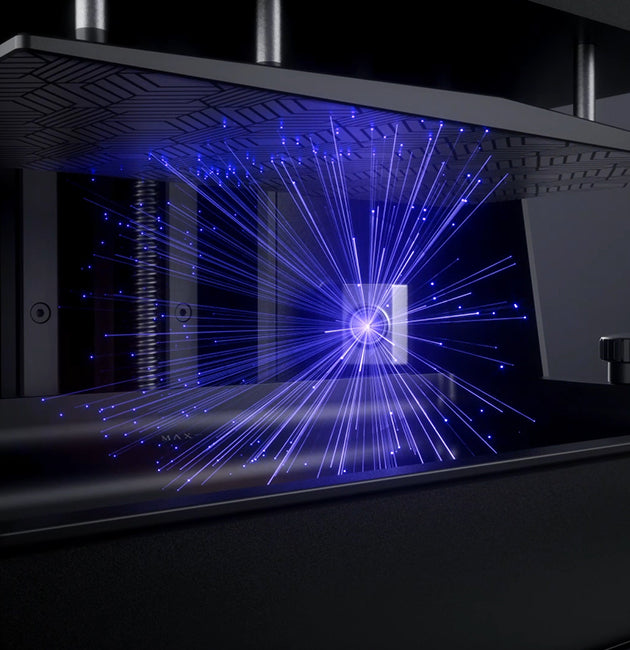

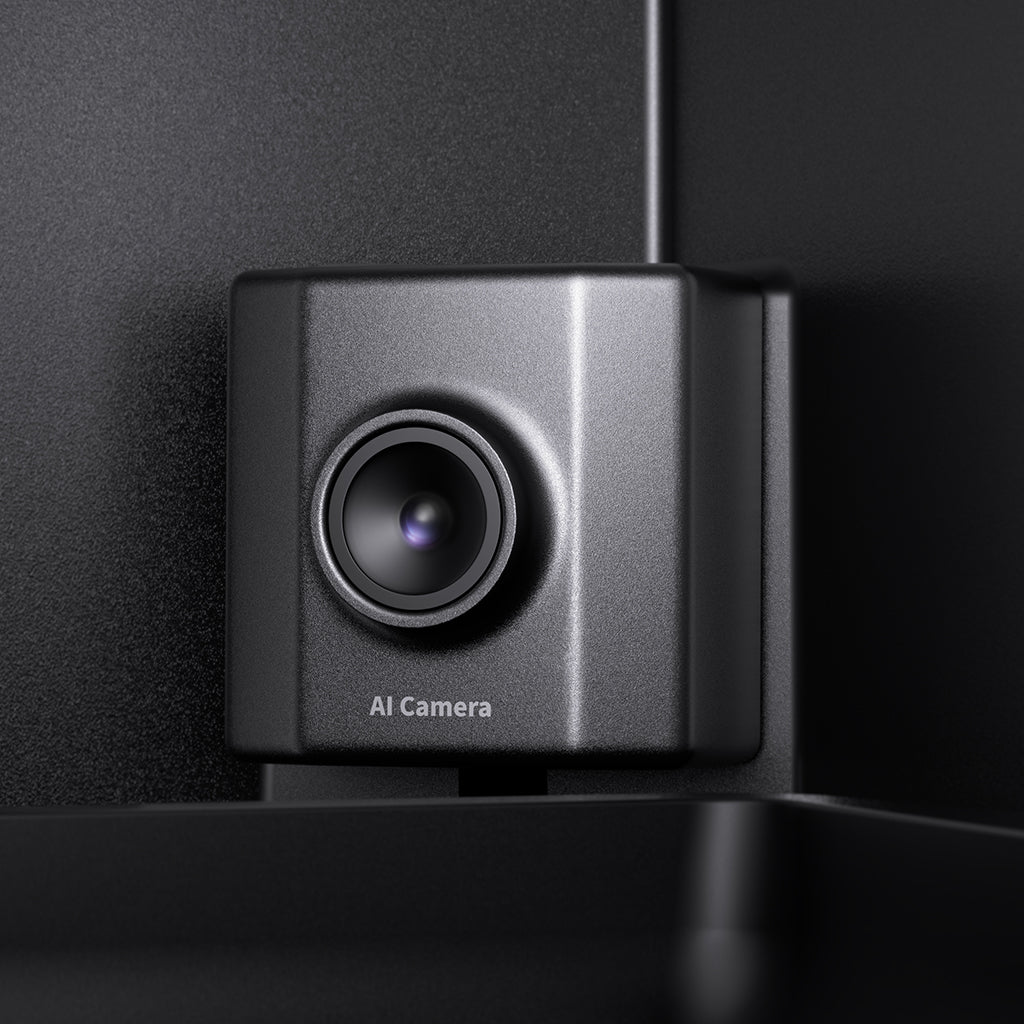

AI Camera Intelligent Detection, Minimize Potential Loss

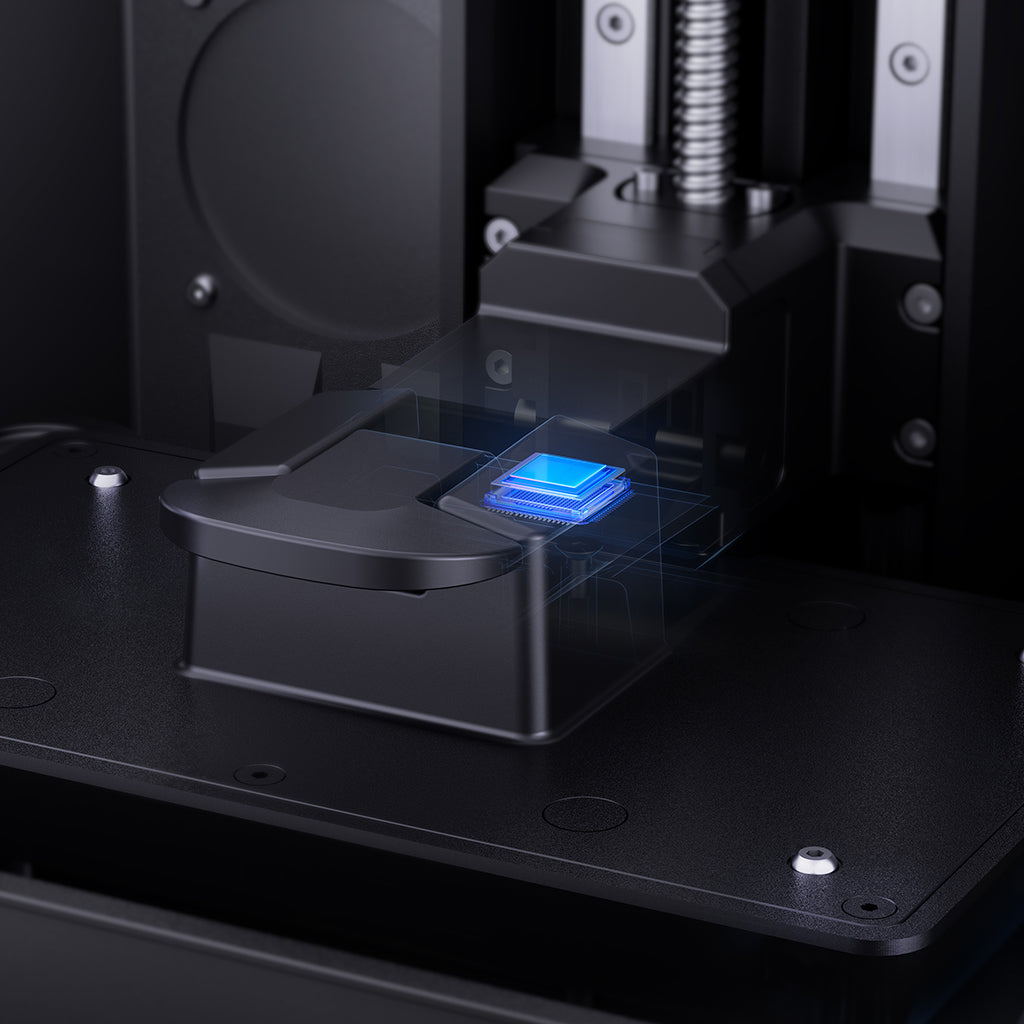

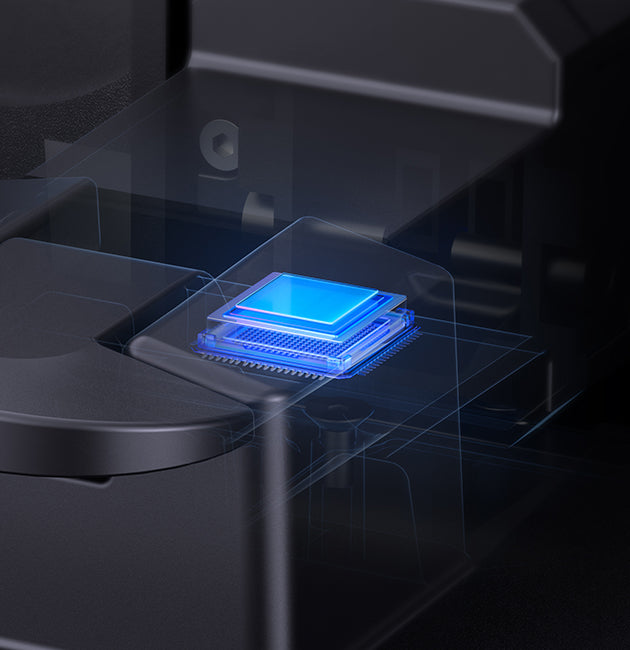

Smart Mechanical Sensor, Enjoy Worry-Free Printing

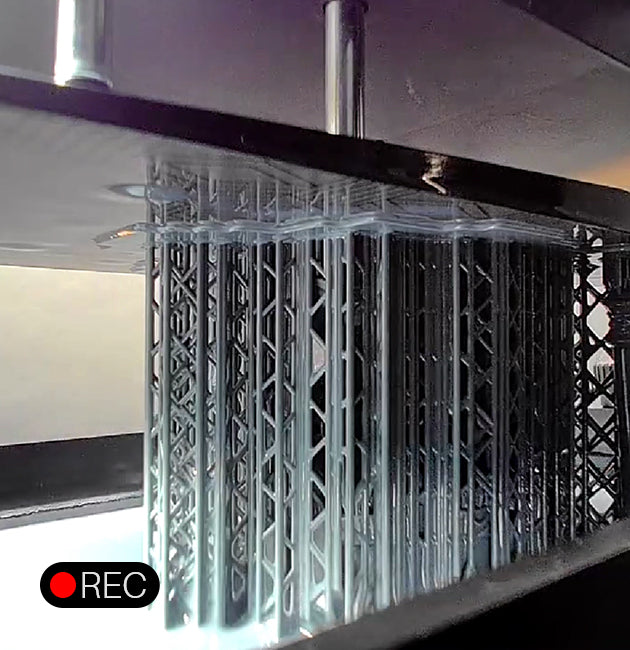

Real-Time Monitoring And Time-Lapse Photography

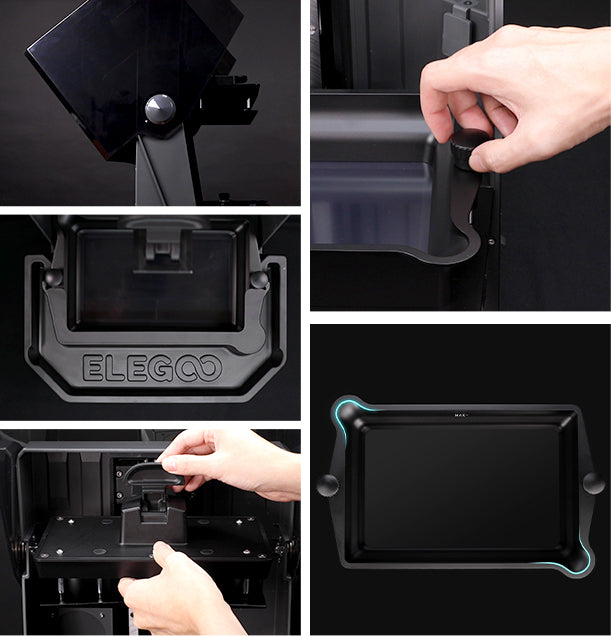

User-Friendly Design
